Connectors
BTB / Etc Series

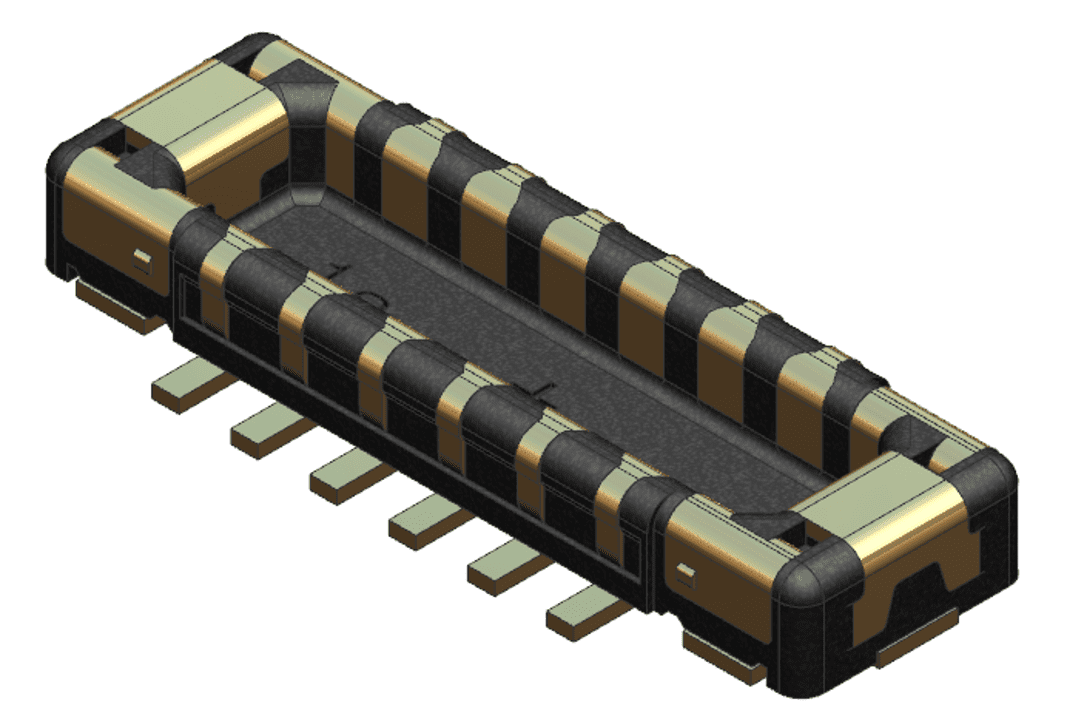

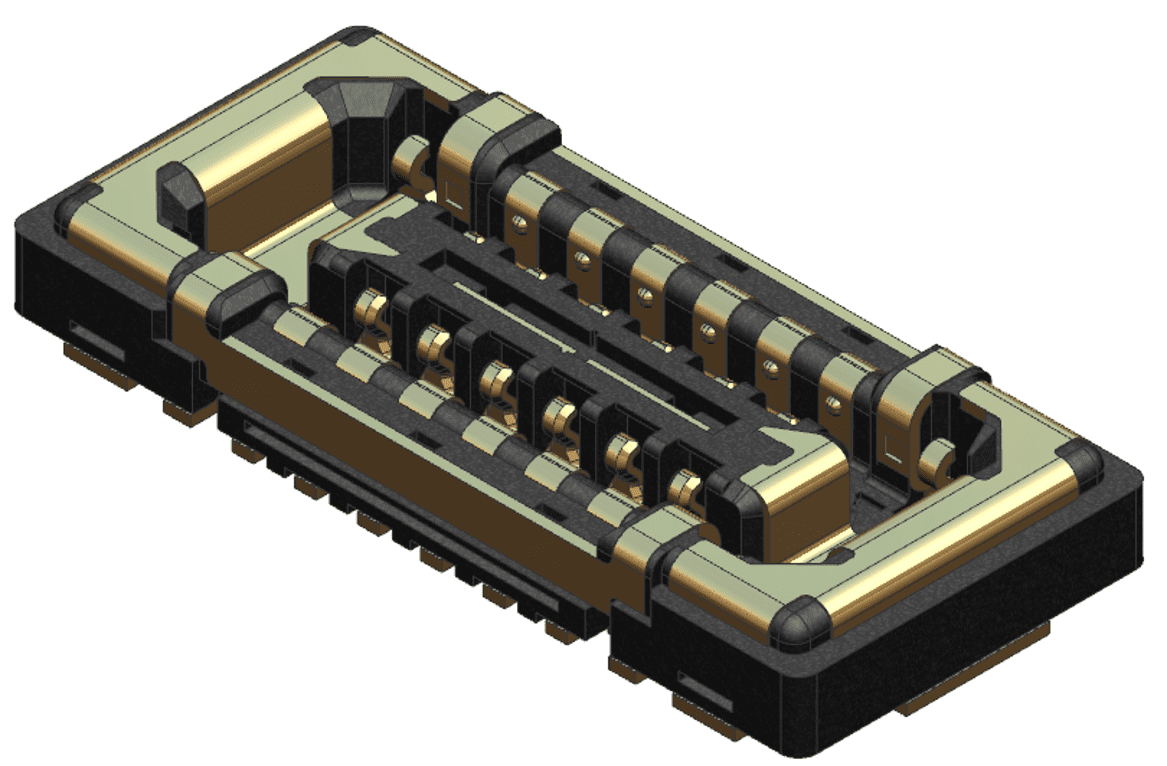

HB12-BH0100 – HB12-BS0100
- RF BTB Header / Socket
Specification
Type
RF BTB Header / Socket
Rated current
Signal Contact 0.3A
Rated Voltage
30V AC/DC
(size : H x W x L)
0.6 x 0.35 x 3.41
MOB-180
- For RF (Radio Frequency)
Specification
Type
RF Switch
Impedance
50Ω
Frequency
DC ~6,000㎒
(size : H x W x L)
1.7 x 3.6 x 3.0

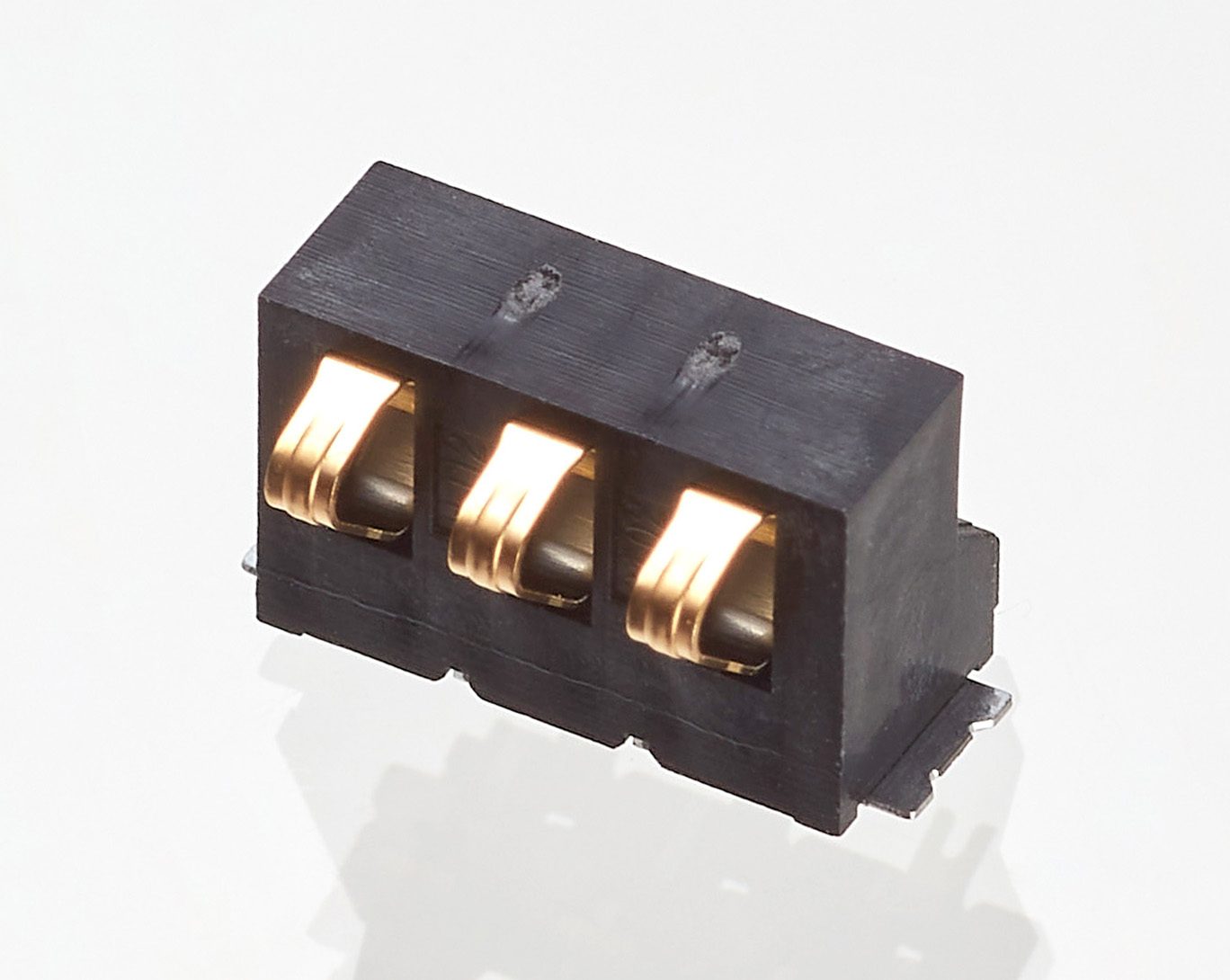

HH03-AF1905
- Replaceable Battery interface connector
Specification
Type
Battery Connector
Rated current
3.0A / Pin (3Pin)
Rated Voltage
100V AC/DC
(size : H x W x L)
5.3 x 8.2 x 4.5

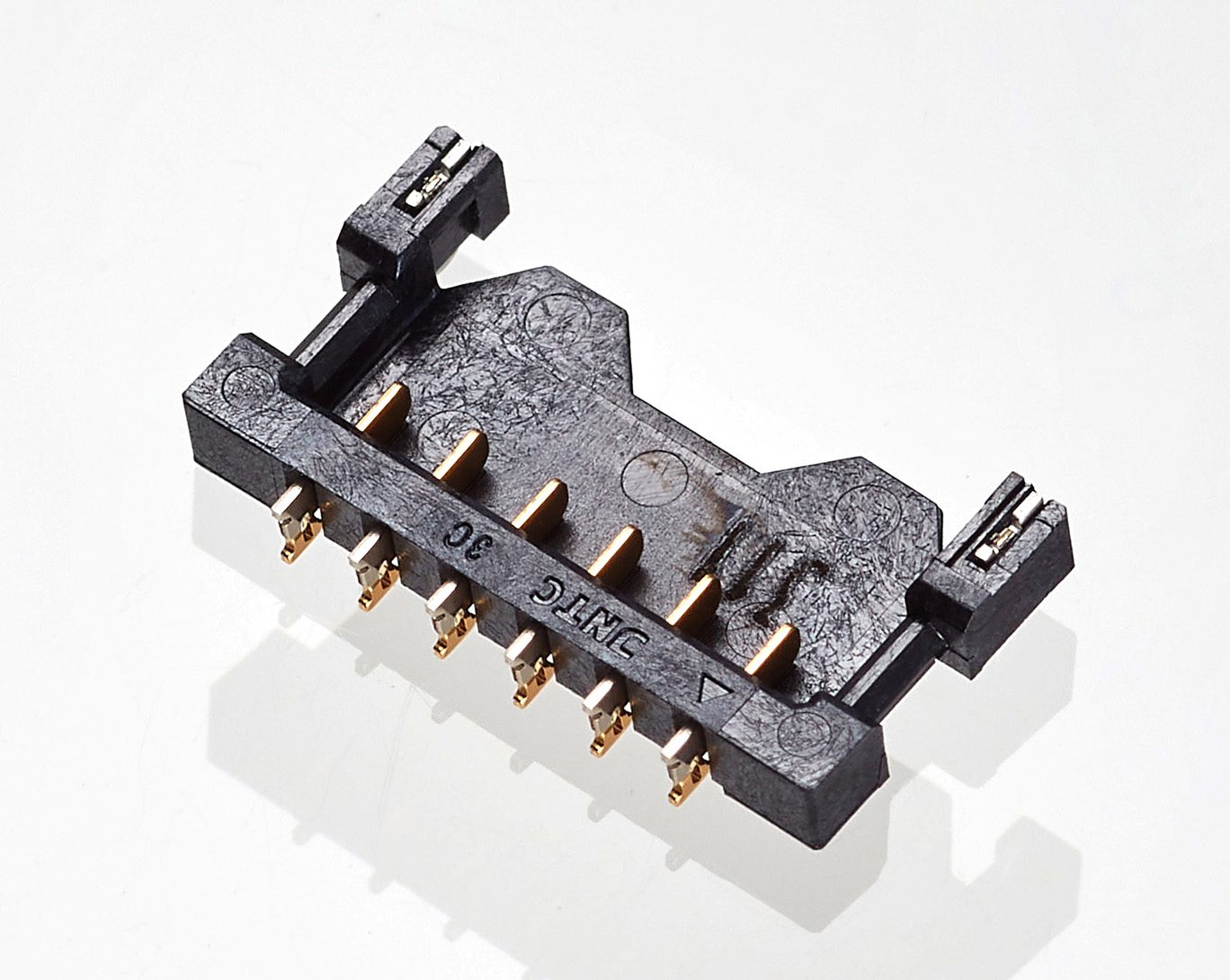

HH06-AF2300
- Board to Wire Battery Connector
Specification
Type
Battery Connector
Rated current
AWG28 2.0A, AWG26 3.0A/ Pin(Max)
Rated Voltage
30V AC
(size : H x W x L)
1.65 x 12.2 x 6.28
